Problem Set

Hear Here: A 'Pi in the Sky' Math Challenge

This problem set was published in March 2015. The distance measurement used in the problem below is also from that time. To see where Voyager is now and get an updated distance measurement, visit the Voyager website.

This activity is related to a Teachable Moment from Aug. 29, 2017. See "The Farthest Operating Spacecraft, Voyagers 1 and 2, Still Exploring 40 Years Later."

› Explore more on the Teachable Moments Blog

Overview

The "Pi in the Sky" math challenge gives students a chance to find solutions to real-world problems all while using math and pi just like NASA scientists and engineers. In this problem from the second installment of the set, students use the mathematical constant pi to determine what fraction of a signal from Voyager 1 – the most distant spacecraft – reaches Earth.

Materials

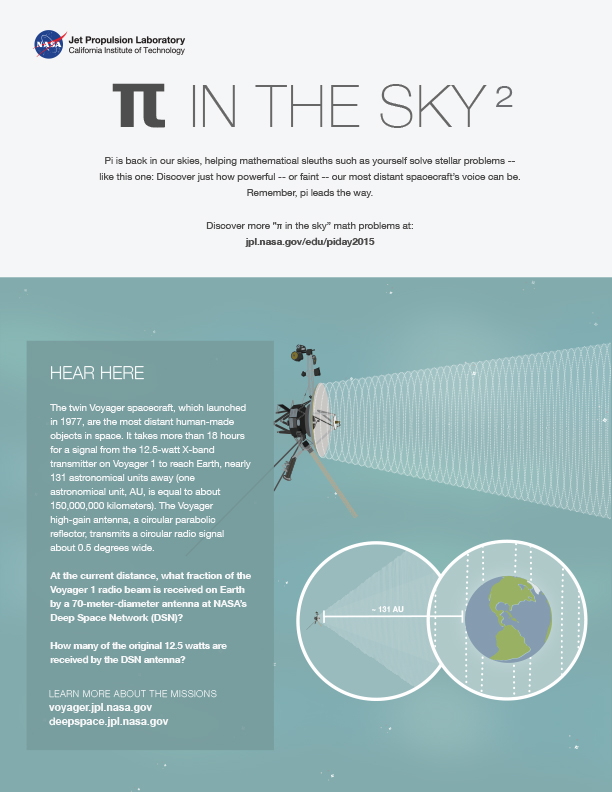

Pi in the Sky 2: Hear Here worksheet – download PDF

Pi in the Sky 2 answer key (fourth problem) – download PNG

Background

The Voyager spacecraft are the most distant human-made objects. Launched in 1977, they were designed to explore the four outer gas planets in our solar system. Since completing their planetary flybys in 1989, they have been journeying toward the farthest reaches of our solar system. At the time of this writing, Voyager 1 is nearly 21 billion kilometers (almost 13 billion miles) from Earth and Voyager 2 is more than 17 billion kilometers (more than 10 billion miles) away.

The twin spacecraft communicate by sending a low-power (12.5 watt) radio beam to Earth, where the signals are received by massive antennas, some as large as 70 meters in diameter. Because the radio beam spreads as it travels the distance to Earth, only a fraction of the 12.5 watts actually makes it to the antennas.

How much of that signal makes it to Earth? Students can use pi to find out.

Procedures

The twin Voyager spacecraft, which launched in 1977, are the most distant human-made objects in space. It takes more than 18 hours for a signal from the 12.5-watt X-band transmitter on Voyager 1 to reach Earth, nearly 131 astronomical units away (one astronomical unit, AU, is equal to about 150,000,000 kilometers). The Voyager high-gain antenna, a circular parabolic reflector, transmits a circular radio signal about 0.5 degrees wide. At the current distance, what fraction of the Voyager 1 radio beam is received on Earth by a 70-meter-diameter antenna at NASA’s Deep Space Network (DSN)
How many of the original 12.5 watts are received by the DSN antenna?
